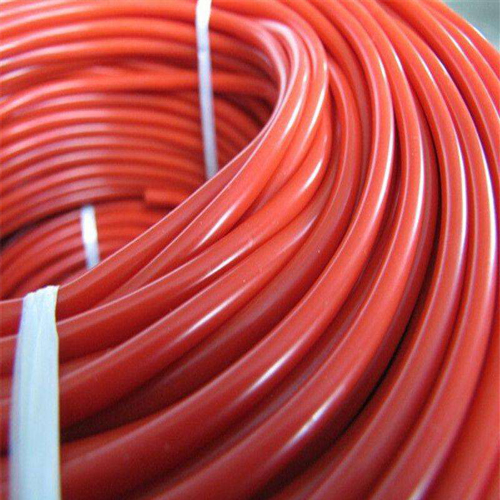

AGG系列硅橡膠高壓線產品特性：
1、額定電壓： 5KV、10KV、15KV、20KV、25KV、30KV、50KV、100KV
2、工作溫度：-60～+200℃
3、導 體：絞合鍍錫銅線
4、絕 緣：硅橡膠
5、顏 色：紅/黃/蘭/白/黑/黃綠/棕等
AGG系列硅橡膠高壓線規格結構及技術參數：
|
電壓等級 |
導體標稱截面 |
導體結構 |
絕緣厚度 |
平均外徑 |
20 ℃ 時導體電阻最大值 |
|
根數/單線直徑 |
|||||
|
5 |
0.20 |
7/0.20 |
1.00 |
2.60 |
95.0 |
|
0.35 |
19/0.16 |
1.00 |
2.80 |
53.1 |
|
|
0.50 |
16/0.20 |
1.00 |
3.00 |
10.1 |
|
|
0.75 |
24/0.20 |
1.20 |
3.60 |
26.7 |
|
|
1.00 |
32/0.20 |
1.30 |
4.00 |
20.0 |
|
|
1.50 |
30/0.25 |
1.50 |
4.60 |
13.7 |
|
|
2.50 |
49/0.25 |
1.60 |
5.40 |
8.21 |
|
|
10 |
0.20 |
7/0.20 |
1.30 |
3.20 |
95.0 |
|
0.35 |
19/0.16 |
1.30 |
3.40 |
53.1 |
|
|
0.50 |
16/0.20 |
1.30 |
3.60 |
10.1 |
|
|
0.75 |
24/0.20 |
1.50 |
4.20 |
26.7 |
|
|
1.00 |
32/0.20 |
1.50 |
4.40 |
20.0 |
|
|
1.50 |
30/0.25 |
1.80 |
5.20 |
13.7 |
|
|
2.50 |
49/0.25 |
1.80 |
5.80 |
8.21 |
|
|
4.00 |
56/0.30 |
2.00 |
6.80 |
5.09 |
|
|
6.00 |
84/0.30 |
2.00 |
7.60 |
3.39 |
|
電壓等級 |
導體標稱截面 |
導體結構 |
絕緣厚度 |
平均外徑 mm |
20 ℃ 時導體電阻最大值 Ω/km |
|
根數/單線直徑 |
|||||
|
15 |
0.20 |
7/0.20 |
1.70 |
4.00 |
95.0 |
|
0.35 |
19/0.16 |
1.70 |
4.20 |
53.1 |
|
|
0.50 |
16/0.20 |
1.70 |
4.40 |
40.1 |
|
|
0.75 |
24/0.20 |
2.00 |
5.20 |
26.7 |
|
|
1.00 |
32/0.20 |
2.00 |
5.30 |
20.0 |
|
|
1.50 |
30/0.25 |
2.20 |
6.00 |
13.7 |
|
|
2.50 |
49/0.25 |
2.20 |
6.60 |
8.21 |
|
|
4.00 |
56/0.30 |
2.40 |
7.60 |
5.09 |
|
|
6.00 |
84/0.30 |
2.40 |
8.40 |
3.39 |
|
|
20 |
0.20 |
7/0.20 |
1.80 |
4.20 |
95.0 |
|
0.35 |
19/0.16 |
1.80 |
4.40 |
53.1 |
|
|
0.50 |
16/0.20 |
1.80 |
4.60 |
40.1 |
|
|
0.75 |
24/0.20 |
2.20 |
5.60 |
26.7 |
|
|
1.00 |
32/0.20 |
2.20 |
5.80 |
20.0 |
|
|
1.50 |
30/0.25 |
2.40 |
6.40 |
13.7 |
|
|
2.50 |
49/0.25 |
2.40 |
7.00 |
8.21 |
|
|
4.00 |
56/0.30 |
2.60 |
8.00 |
5.09 |
|
|
6.00 |
84/0.30 |
2.60 |
8.80 |
3.39 |
|
|
25 |
0.20 |
7/0.20 |
2.50 |
5.60 |
95.0 |
|
0.35 |
19/0.16 |
2.50 |
5.80 |
53.1 |
|
|
0.50 |
16/0.20 |
2.50 |
6.00 |
40.1 |
|
|
0.75 |
24/0.20 |
2.70 |
6.60 |
26.7 |
|
|
1.00 |
32/0.20 |
2.70 |
6.80 |
20.0 |
|
|
1.50 |
30/0.25 |
2.90 |
7.50 |
13.7 |
|
|
2.50 |
49/0.25 |
2.90 |
8.00 |
8.21 |
|
|
4.00 |
56/0.30 |
3.10 |
9.00 |
5.09 |
|
|
6.00 |
84/0.30 |
3.10 |
9.80 |
3.39 |
|
|
30 |
0.20 |
7/0.20 |
3.00 |
6.60 |
95.0 |
|
0.35 |
19/0.16 |
3.00 |
6.80 |
53.1 |
|
|
0.50 |
16/0.20 |
3.00 |
7.00 |
40.1 |
|
|
0.75 |
24/0.20 |
3.40 |
8.00 |
26.7 |
|
|
1.00 |
32/0.20 |
3.40 |
8.20 |
20.0 |
|
|
1.50 |
30/0.25 |
3.60 |
9.00 |
13.7 |
|
|
2.50 |
49/0.25 |
3.60 |
9.40 |
8.21 |
|
|
4.00 |
56/0.30 |
3.80 |
10.5 |
5.09 |
|
|
6.00 |
84/0.30 |
3.80 |
11.2 |
3.39 |
|
|
50 |
0.20 |
7/0.20 |
7.00 |
14.6 |
95.0 |
|
0.35 |
19/0.16 |
7.00 |
14.8 |
53.1 |
|
|
0.50 |
16/0.20 |
7.00 |
15.0 |
40.1 |
|
|
0.75 |
24/0.20 |
7.20 |
15.6 |
26.7 |
|
|
1.00 |
32/0.20 |
7.20 |
15.8 |
20.0 |
|
|
1.50 |
30/0.25 |
7.50 |
16.6 |
13.7 |
|
|
2.50 |
49/0.25 |
7.50 |
17.2 |
8.21 |
|
|
4.00 |
56/0.30 |
8.00 |
19.0 |
5.09 |
|
|
6.00 |
84/0.30 |
8.00 |
20.0 |
3.39 |
|
|
100 |
1.00 |
32/0.30 |
12.0 |
25.0 |
20.0 |
|
1.50 |
30/0.25 |
13.0 |
27.8 |
13.7 |
|
|
2.50 |
49/0.25 |
13.0 |
28.5 |
8.21 |
|
|
注：根據雙方技術協議，可生產其他規格的產品。 |
|||||
